6.3. Connectors definition

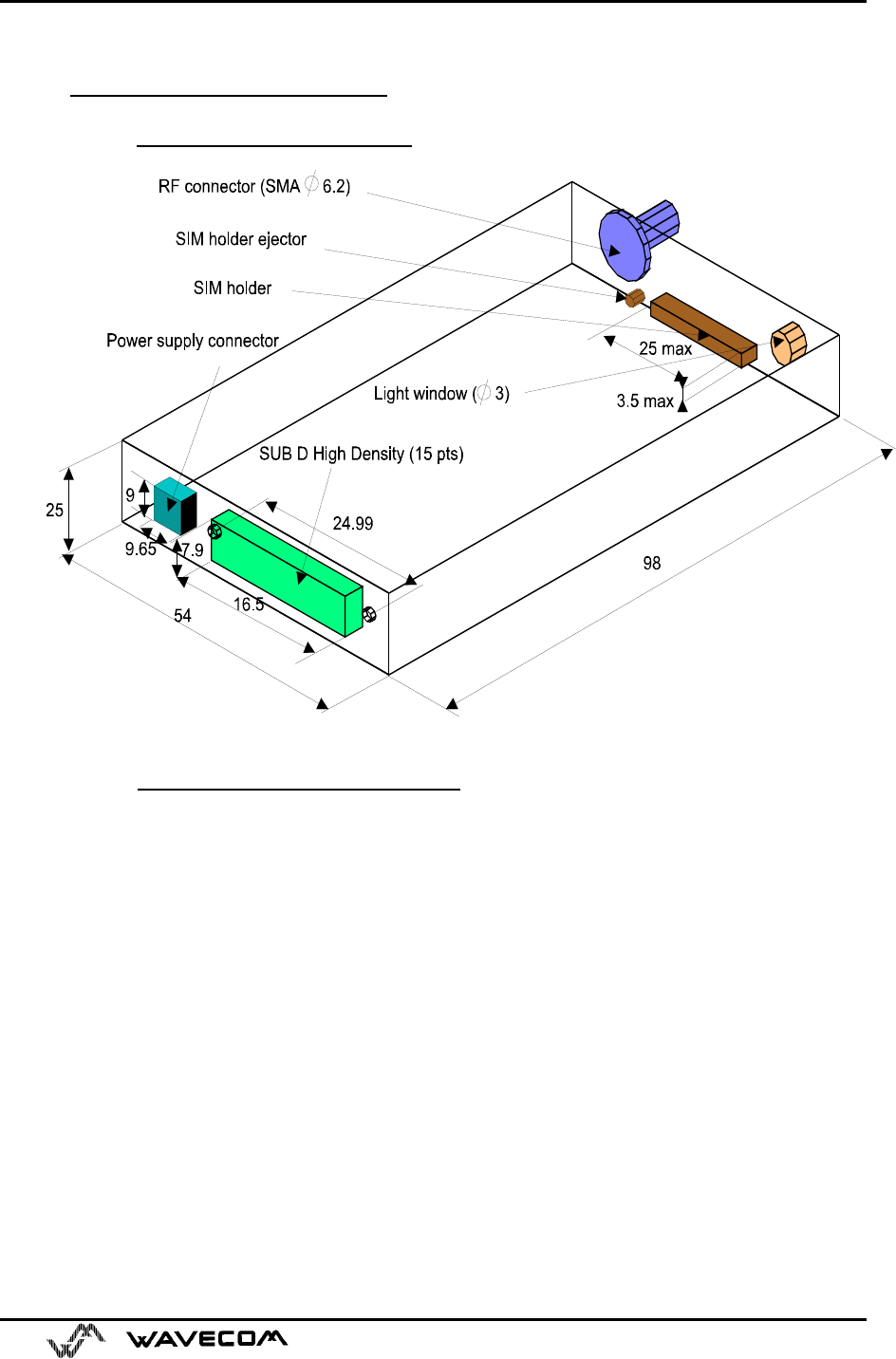

6.3.1. Connector location

6.3.2. Connectors description

We apply the following constraints in the connector choice:

* size,

* mechanical,

* electrical performances,

* Industrialisation (surface assembly choice).

In order to extract or insert the Micro SIM card, each user has to

press with a sharp element (a pen for example) the SIM holder ejector.

If this procedure is no respected, the SIM holder could be destroyed.
